- Free logging software—NI FlexLogger™ Lite
- Seamless LabVIEW integration
- Documented APIs with example programs for Python, C/C++, C#, and more
What Is a Multifunction I/O Device?
A Multifunction I/O Device combines flexible channels, sample rates, and outputs for reliable data acquisition and control. It is ideal for a wide variety of industry applications such as laboratory automation, research, and design verification.

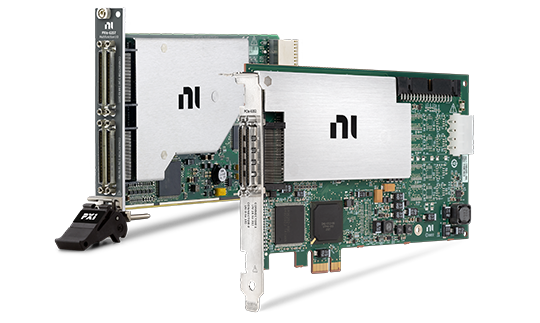

Premium NI DAQ Devices at New Lower Prices
The new NI DAQ Multifunction I/O products deliver high-performance, software-defined solutions with maximum value at the lowest cost. Choose from 10 new DAQ boards across PCI and PXI to scale your test system.
PCIe-6340 (16 AI, 24 DIO, 500 kS/s), PCIe-6342 (32 AI, 48 DIO, 500 kS/s), PCIe-6350 (16 AI, 24 DIO, 1.25 MS/s), PCIe-6352 (32AI, 48 DIO, 1.25 MS/s)
Lowest cost per channel PXI boards:
PXIe-6321 (16 AI, 2 AO, 24 DIO, 250 kS/s) , PXIe-6323 (32 AI, 4 AO, 48 DIO, 250kS/s), PXIe-6343 (32 AI, 4 AO, 48 DIO, 500 kS/s), PXIe-6351 (16 AI, 2 AO, 24 DIO, 1.25 MS/s), PXIe-6353 (32 AI, 4 AO, 48 DIO, 1.25 MS/s), PXIe-6357 (208 AI, 2 AO, 24 DIO, 1.25 MS/s)

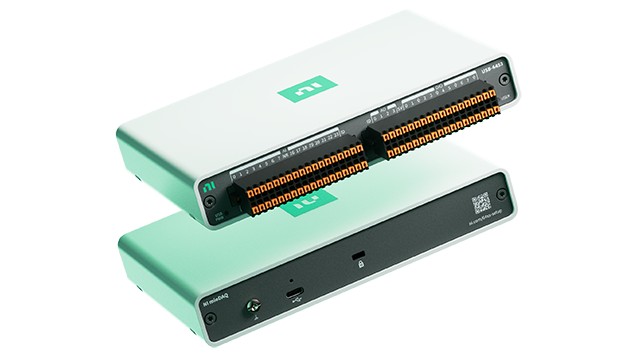

The Best NI USB DAQ Device Ever
With 20-bit resolution, high-speed inputs, seamless NI LabVIEW integration, enhanced Python support, and a host of setup improvements, NI mioDAQ devices set a new standard for bus-powered USB data acquisition. Put one on your bench to catch problems before they impact your product launch.

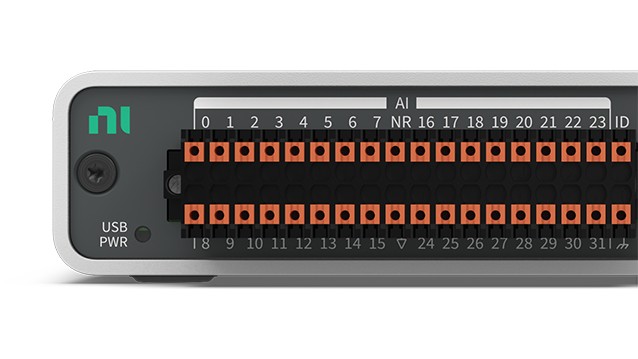

High-Quality ±10 V Inputs with NI USB DAQ
With multiple decades of research and development expertise behind it, a Multifunction I/O Device can ensure every measurement is highly accurate and repeatable. You can rest assured that your NI DAQ device provides reliable performance from one measurement to the next.
Featured Content
Engineer’s Guide to Digitization of Analog Signals
This guide is a technical overview of the process of analog-to-digital conversion. Learn about the types of digitizers, considerations for each, and practical questions to keep in mind when choosing the right hardware for a particular application.
Quick Selection
Most User-Friendly
Contact us
Please select your country to get pricing information

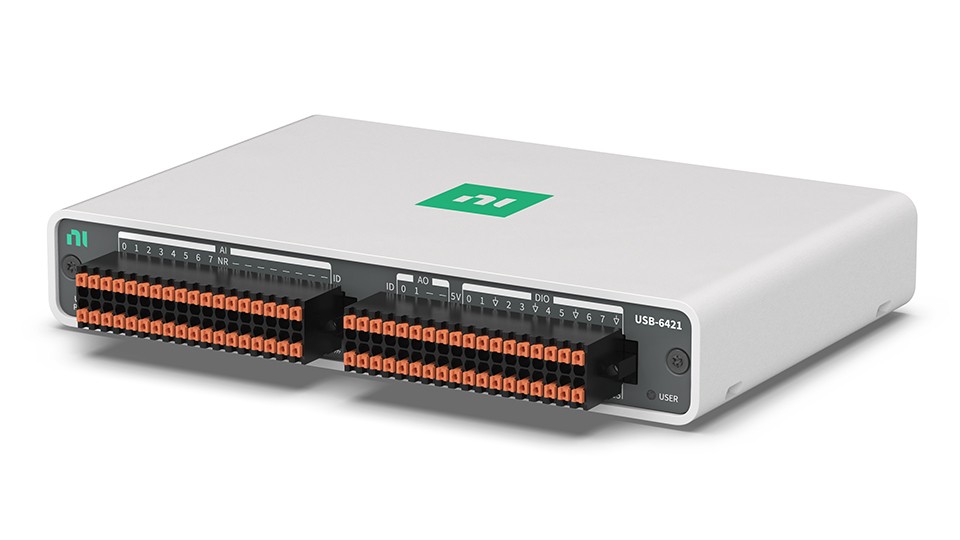

NI USB-6421
250 kS/s
16 SE, 8 DI AI Channels
16 DIO
2 AO Channels
Most Popular
Contact us
Please select your country to get pricing information

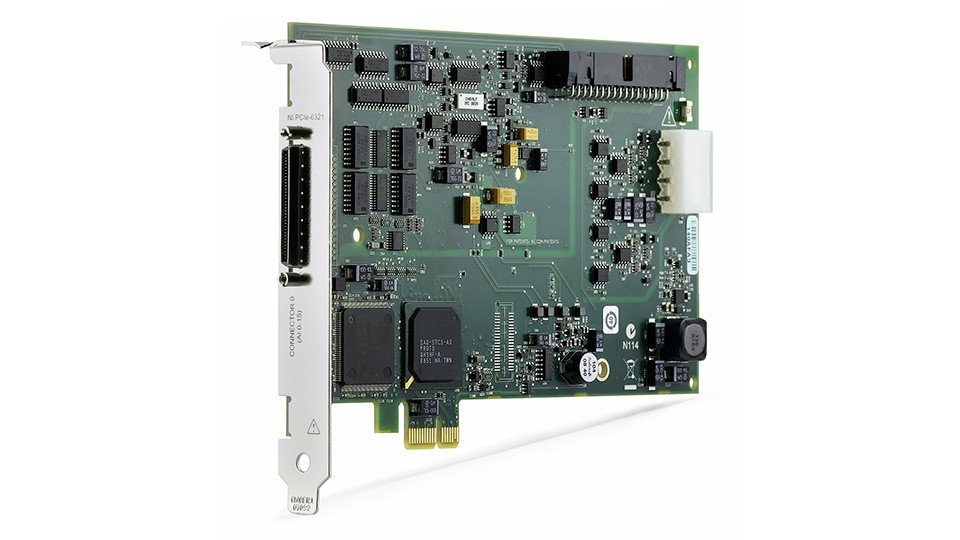

NI PCIe-6321
250 kS/s
16 SE, 8 DI AI Channels
24 DIO
2 AO Channels
High-Speed
Contact us
Please select your country to get pricing information

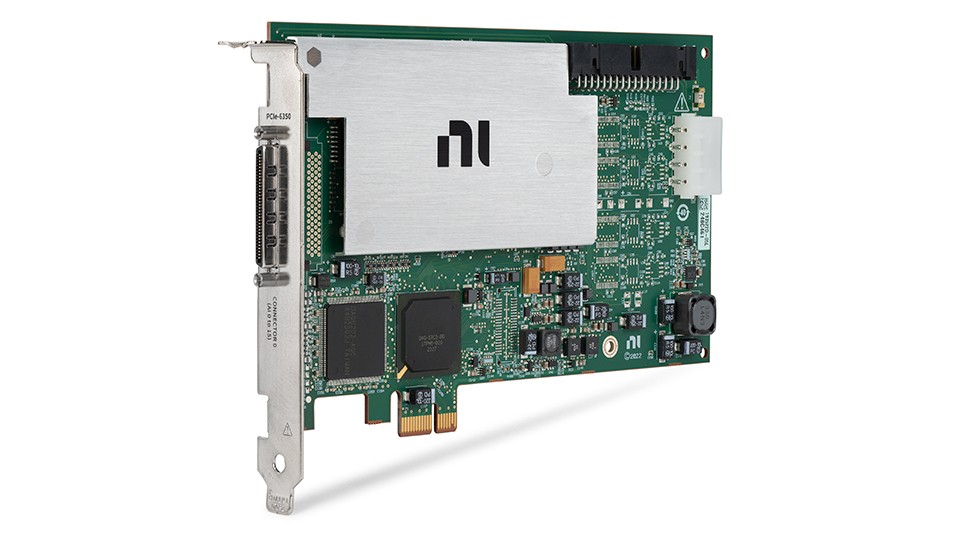

NI PCIe-6350
1.25 MS/s
16 SE, 8 DI AI Channels
24 DIO
High-Performance
Contact us
Please select your country to get pricing information

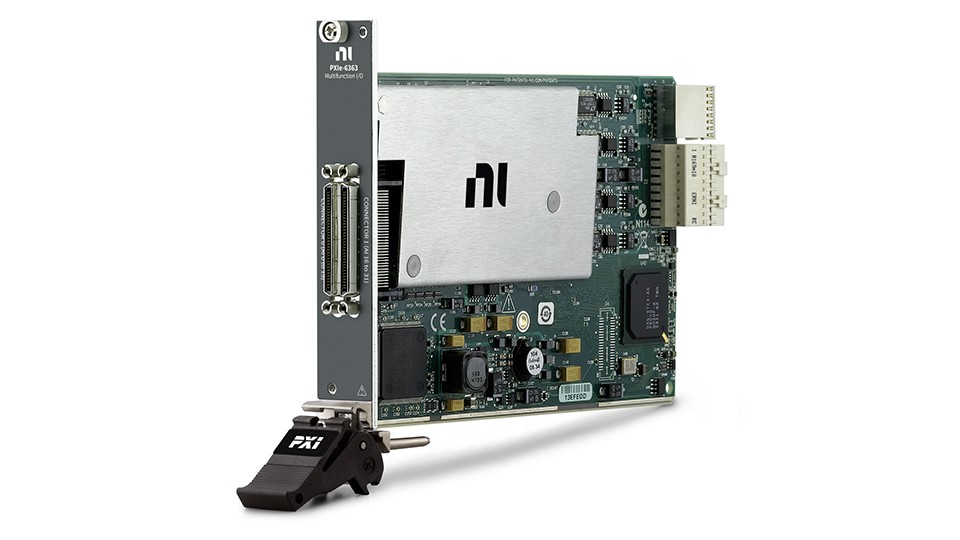

NI PXIe-6363
2 MS/s
32 SE, 16 DI AI Channels
48 DIO
4 AO Channels
Best Value
Contact us
Please select your country to get pricing information

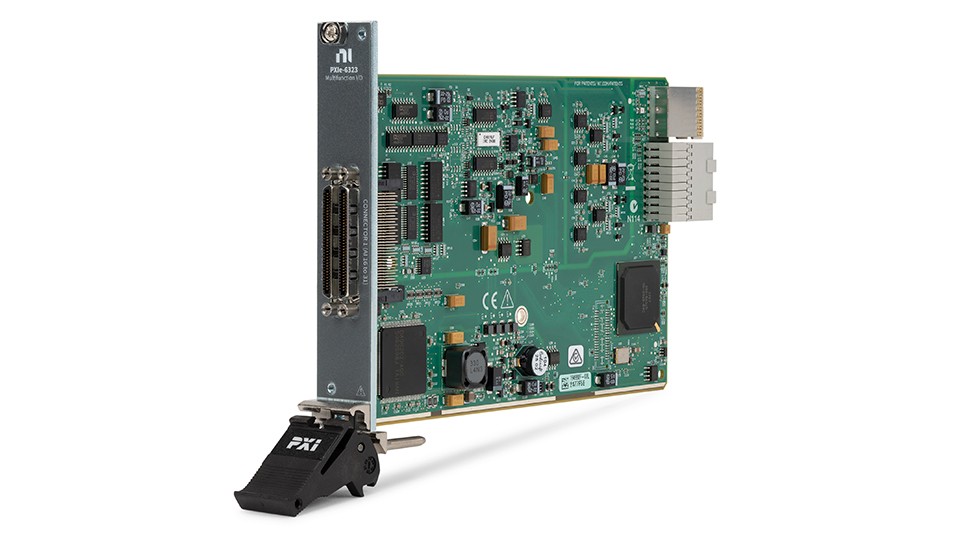

NI PXIe-6323
- 250 kS/s
- 32 SE, 16 DI AI Channels
- 48 DIO
- 4 AO Channels
Industry-Leading DAQ Software Included
Need more choices? Discover more NI DAQ hardware.
Sensor Measurements
CompactDAQ systems are more rugged than multifunction I/O devices and can measure sensors like IEPE accelerometers, thermocouples, and load cells. Select from more than 70 measurement modules and eight chassis (USB or Ethernet) available to assemble your optimal measurement system.
Recommended Uses:
- Mechanical tests
- Logging sensor data to a PC
- Shock and vibration tests
- Acoustic measurements
More Speed and More Channels
PXI systems are like a PC, except they have up to 17 expansion slots so you can keep adding high-speed, synchronized channels for large measurement systems.
Recommended Uses:
- Research and electronic test benches
- PCBA manufacturing test systems
- I/O for firmware test
- Sensors that output 10 V
Waterproof, Shockproof DAQ
IP67-rated, ultra-rugged design for voltage, strain/bridge, accelerometer/microphone, and thermocouple measurements. Link and sync with a single Ethernet cable.
Recommended Uses:
- Engine test cells
- Static fire rocket tests
- Structural research
- Heavy equipment field test
